270-324 MFD 125V Start Capacitor 37x86mm

270-324 MFD 125V Start Capacitor 37x86mm

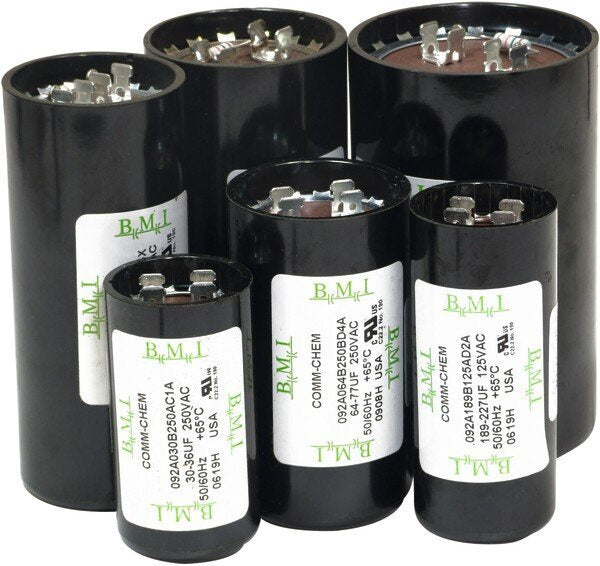

250v Motor Start Capacitors

Motor Start units are non-polarized aluminum electrolytic capacitors designed for intermittent AC duty. These capacitors are used in starting fractional horsepower, singlephase electric motors, as well as in gear motor applications.

The capacitors are housed in rugged plastic cases, which require no added insulation. Moisture and Oil Resistant.

Termination: ¼” Quick Disconnect Terminals (Std.)

Operating Temperature: -40 to +65°C

Capacitance Tolerance: -0%/+20%

Operating Frequency: 50 – 60Hz

Mounting hardware, end caps and brackets are available to facilitate mounting.

+R = includes dump resister
